Building an aluminum alloy ship is a complex process, and few components are as critical as the deck. The deck must be flat, strong, and perfectly aligned with the hull. But achieving this is not easy – especially when working with aluminum, a material that is sensitive to heat and prone to distortion. That is why professional builders do not weld decks directly onto the hull plate by plate. Instead, they prefabricate the deck as a complete module before laying it onto the hull structure.
At Dookyu Crown Marine, we specialize in marine aluminum fabrication for a wide range of vessels, including Aluminum Catamaran Boat,Aluminum Fire Boat, Aluminum Patrol Boat, Aluminum Luxury Yacht, Aluminum Pilot Boat, Aluminum Speed Boat, and Aluninum Fishing Boat. In this article, we explain why aluminum deck prefabrication is essential – from controlling distortion to speeding up construction and ensuring a perfect fit.
Aluminum alloy has a high coefficient of thermal expansion – about twice that of steel. When a welder applies heat to a small area, the metal expands. When it cools, it contracts. If this happens repeatedly on a large, unrestrained panel, the result is warping, buckling, or twisting. In a deck, distortion means an uneven surface, poor fit with superstructure components, and potential stress concentrations.
If a builder attempts to weld individual deck plates directly onto the hull in situ, each weld adds heat to a different part of the structure. The cumulative effect is unpredictable distortion. By contrast, aluminum deck prefabrication allows the deck to be assembled and welded in a controlled workshop environment – on a flat, rigid jig that holds everything in place.

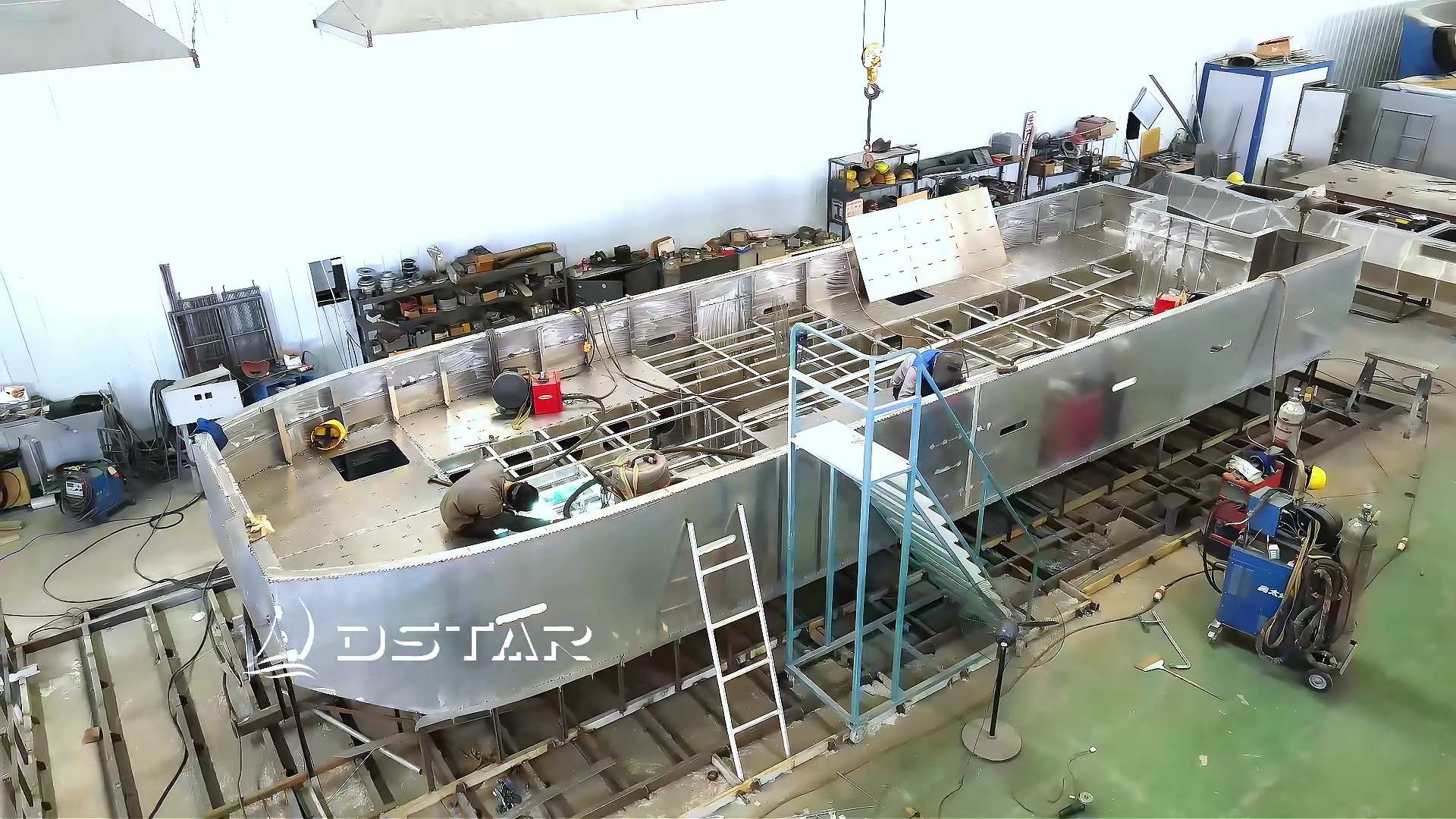

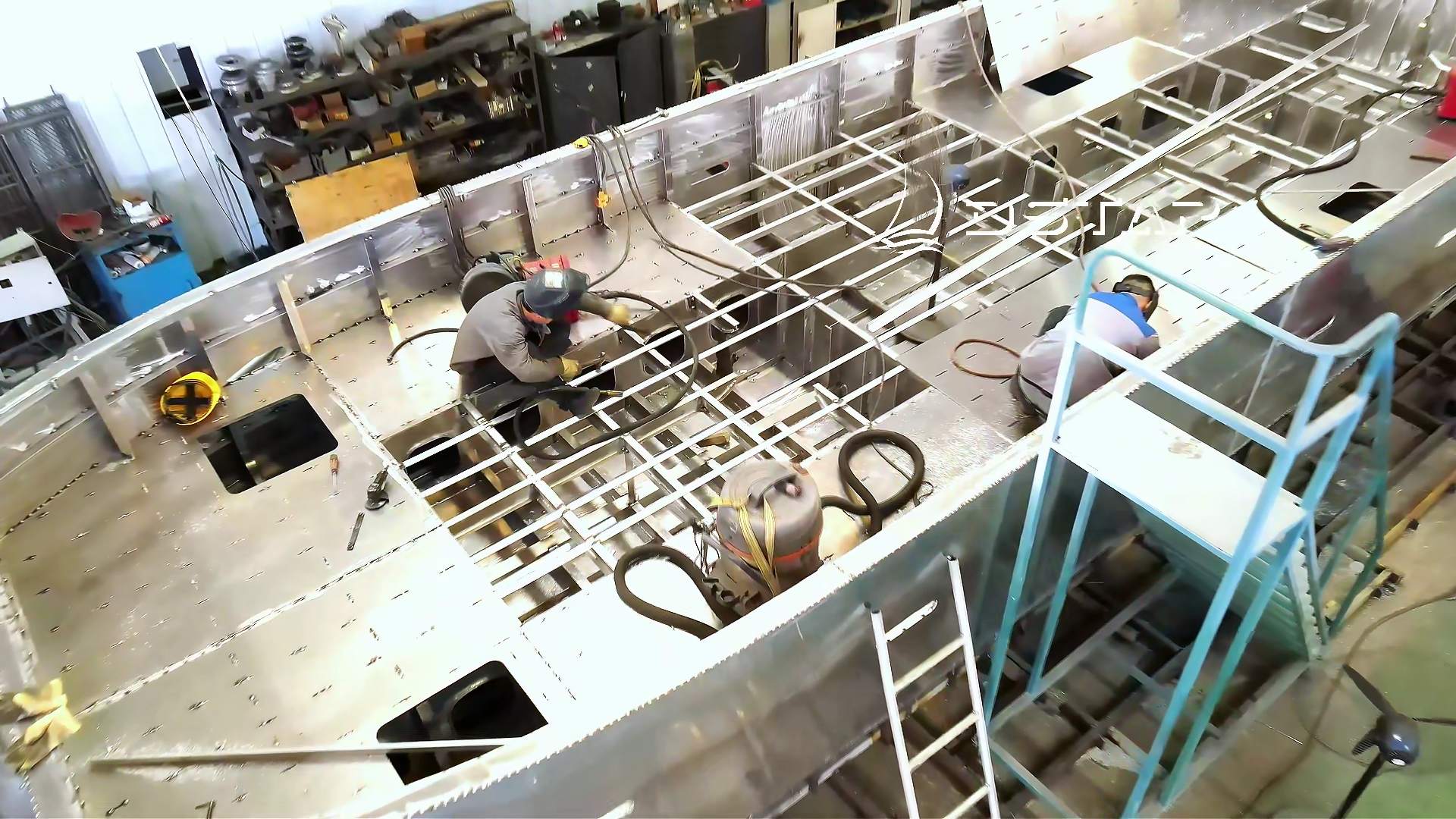

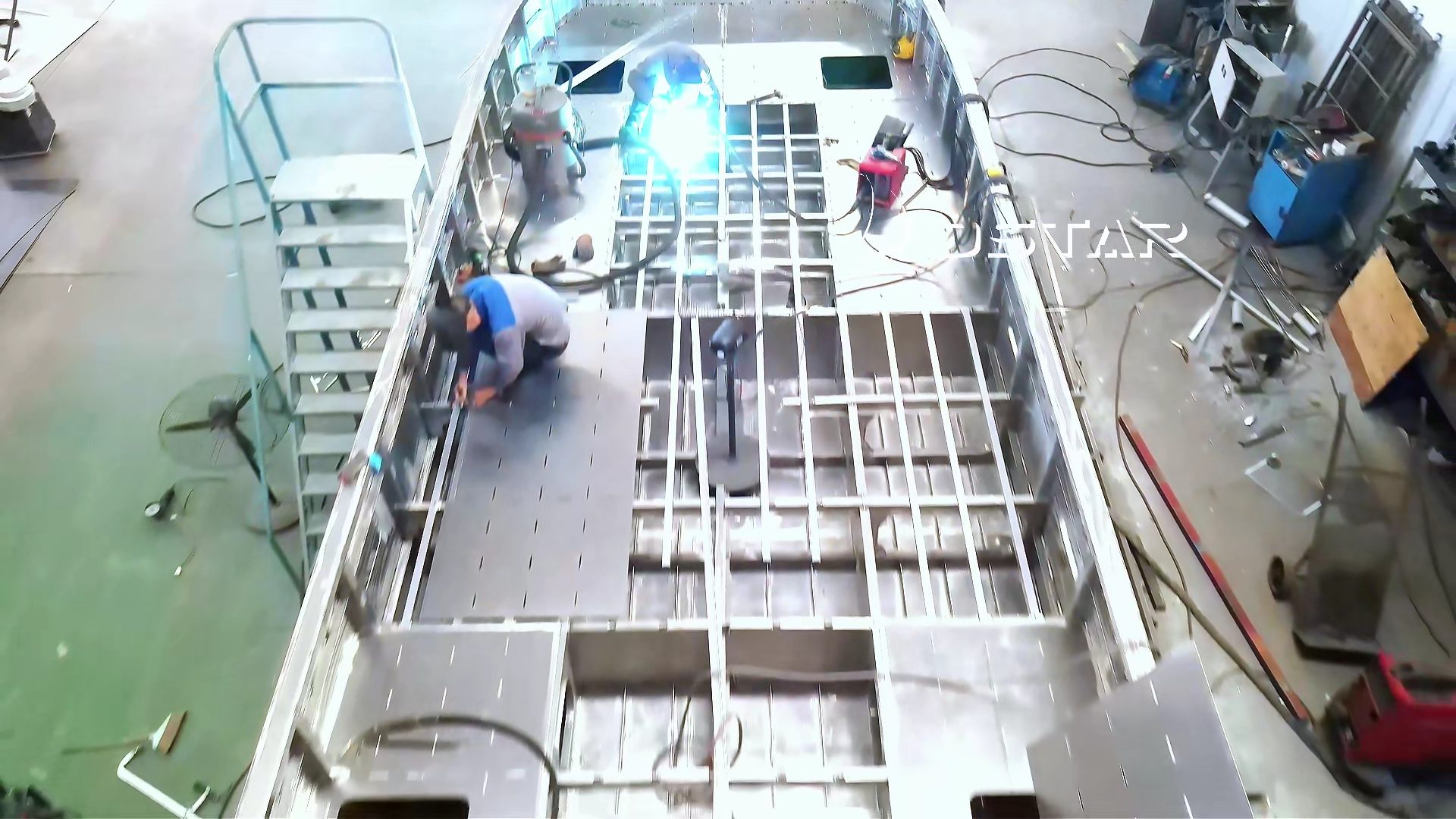

During aluminum deck prefabrication, the entire deck panel is built upside down or right‑side up on a dedicated welding table or strongback. The longitudinal stiffeners, transverse beams, and plate edges are clamped or tack‑welded into position before any continuous welding begins. Welders then follow a carefully planned sequence – often welding from the center outward, alternating sides – to balance thermal stresses.
This controlled process results in reduced welding distortion because the jig physically prevents movement during heating and cooling. Once the deck is fully welded, it is stress‑relieved (through natural cooling or, in some cases, mechanical straightening). The final product is a flat, true deck panel that requires minimal fairing or correction.
H4: The Cost of Not Prefabricating
A builder who welds deck plates directly onto the hull without prefabrication often spends hours – or days – grinding, heat‑straightening, and shimming to correct distortion. This not only adds labor cost but also risks weakening the structure through repeated heating. Reduced welding distortion through prefabrication is both a quality and an economic advantage.
In traditional on‑site welding, the hull must be fully completed before deck work can begin. The deck plates are lifted one by one, positioned, and welded – a slow, sequential process. With aluminum deck prefabrication, the deck is built as a separate module while the hull is still under construction elsewhere in the workshop. These two major tasks happen in parallel.
Once both the hull and the prefabricated deck are ready, the deck is lifted as a single unit and lowered onto the hull. The perimeter and key attachment points are then welded. This parallel workflow dramatically improves deck installation efficiency – often reducing overall build time by 30% or more.
A prefabricated ship deck is made to exact dimensions using CNC‑cut plates and precisely positioned stiffeners. When it is time to install, the deck drops into place with millimeter accuracy. The mating surfaces between the deck and the hull’s sheer strake or topside plates are designed to match perfectly. This reduces the need for on‑site trimming, re‑welding, or shimming.
For vessels like an Aluminum Catamaran Boat with two separate hulls and a connecting deck structure, prefabrication is almost mandatory. The deck must fit both hulls simultaneously. Prefabrication ensures that the deck’s attachment points align perfectly with the hulls’ shear strakes, saving days of adjustment.
H4: Faster Delivery to Customers
Higher deck installation efficiency means shorter construction cycles. At Dookyu Crown Marine, we pass these time savings on to our customers – whether they are ordering an Aluminum Patrol Boat for government use or an Aluninum Fishing Boat for commercial fishing.
Welding aluminum outdoors or on an already‑assembled hull introduces variables: wind, humidity, and difficult access positions. A prefabricated ship deck is built indoors on a level jig. The welder can work from both sides, use proper shielding gas coverage, and maintain consistent travel speed. The result is higher‑quality welds with fewer defects like porosity or lack of fusion.
When a deck is prefabricated as a separate module, inspectors can access every weld from all angles. Non‑destructive testing (dye penetrant or radiography) is straightforward. If a repair is needed, it is done on the bench – not while leaning over the side of a hull. This quality assurance translates into a longer‑lasting, safer vessel.
For builders who produce series of similar boats – such as multiple Aluminum Catamaran Boat units for a ferry operator – aluminum deck prefabrication allows for repeatable, identical decks. The same jig and welding sequence produce the same results every time. This consistency is a hallmark of professional marine aluminum fabrication.
H4: Application to All Our Products
At Dookyu Crown Marine, we apply deck prefabrication not only to catamarans but also to Aluminum Fire Boat, Aluminum Patrol Boat, Aluminum Luxury Yacht, Aluminum Pilot Boat, Aluminum Speed Boat, and Aluninum Fishing Boat. Every vessel benefits from reduced distortion, faster installation, and higher quality.
At Dookyu Crown Marine, we have built our reputation on delivering aluminum vessels that are straight, strong, and delivered on time. Aluminum deck prefabrication is a core part of our production process because it delivers:
Reduced welding distortion – flatter decks, better fit.
Deck installation efficiency – shorter build times, lower costs.
Marine aluminum fabrication excellence – consistent, high‑quality welds.
Prefabricated ship deck accuracy – perfect alignment with hulls.
Alloy deck pre assembly that simplifies logistics.
We use CNC‑cutting tables, precision jigs, and certified welders to produce prefabricated ship deck modules for vessels up to 20 meters in length. Whether you need a deck for a Aluminum Patrol Boat or a Aluminum Luxury Yacht, our process ensures a flat, distortion‑free surface that will serve you for decades.
Prefabricating an aluminum deck before laying it onto the hull is not an optional extra – it is a necessity for quality, efficiency, and safety. Aluminum deck prefabrication enables reduced welding distortion, improves deck installation efficiency, and represents true marine aluminum fabrication best practice. A prefabricated ship deck ensures perfect fit, while alloy deck pre assembly streamlines the entire build.
At Dookyu Crown Marine, we apply these principles to every vessel we build – from an Aluminum Catamaran Boat to an Aluninum Fishing Boat. The result is a stronger, straighter, longer‑lasting boat that performs exactly as designed.
