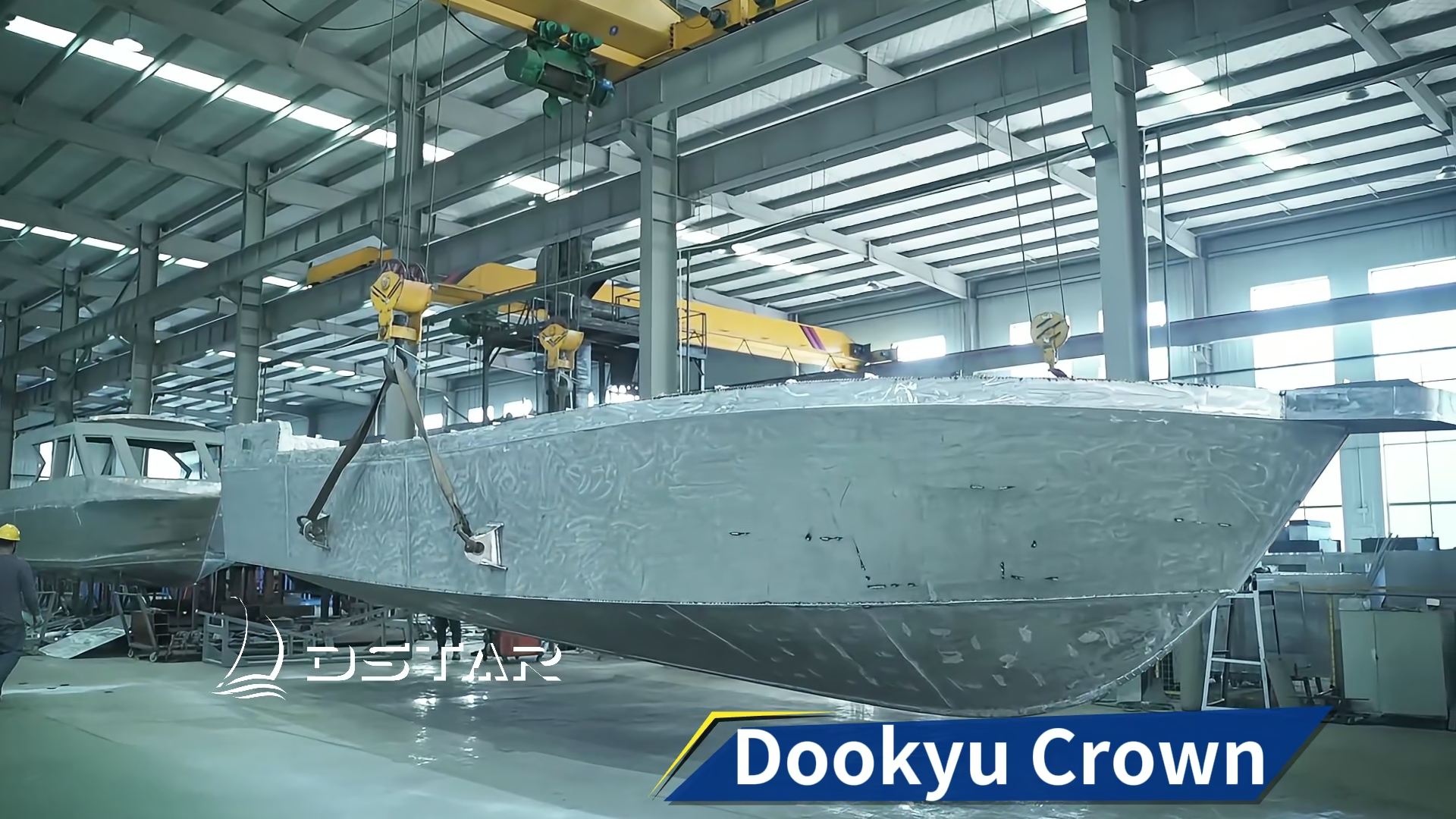

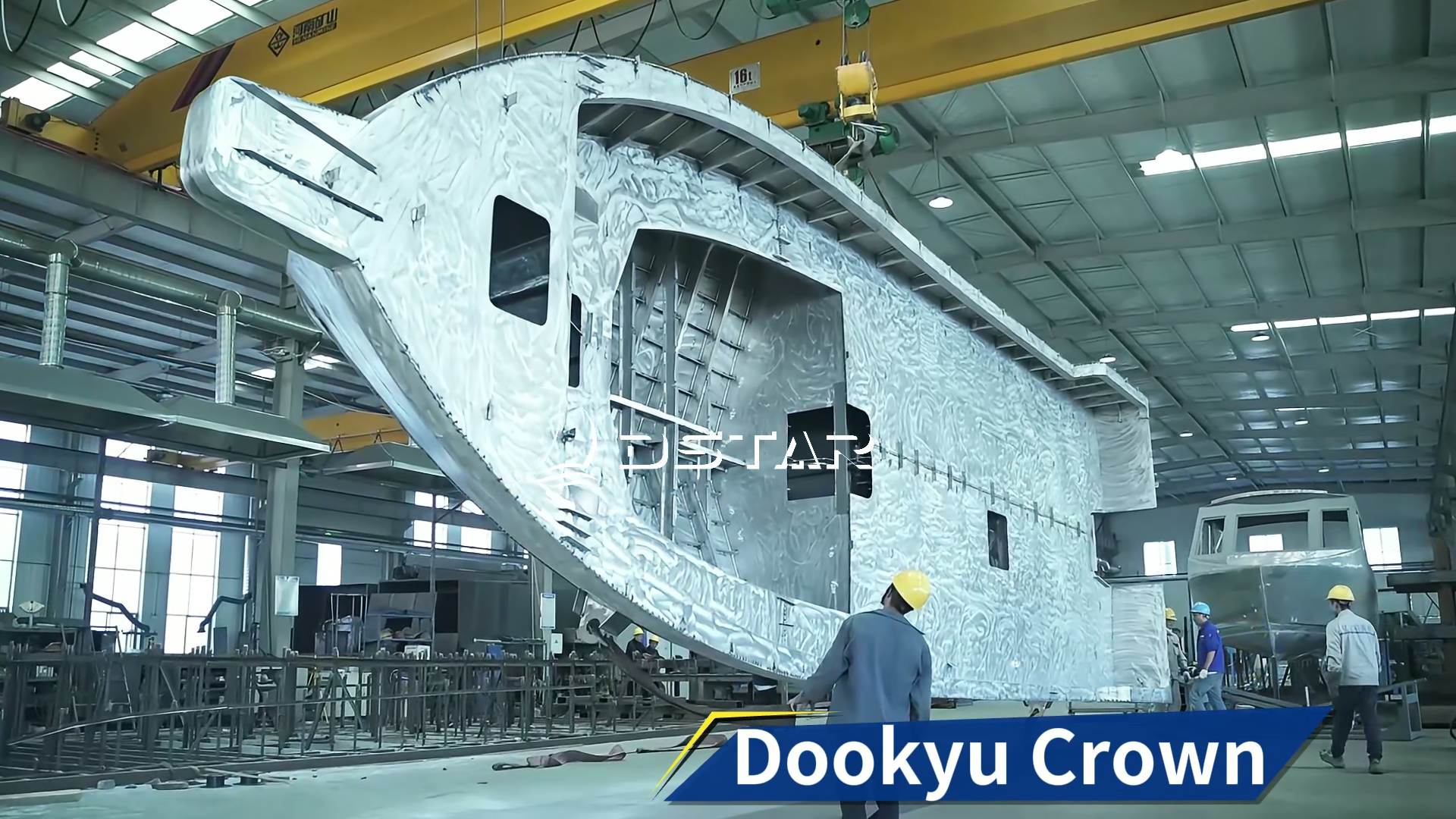

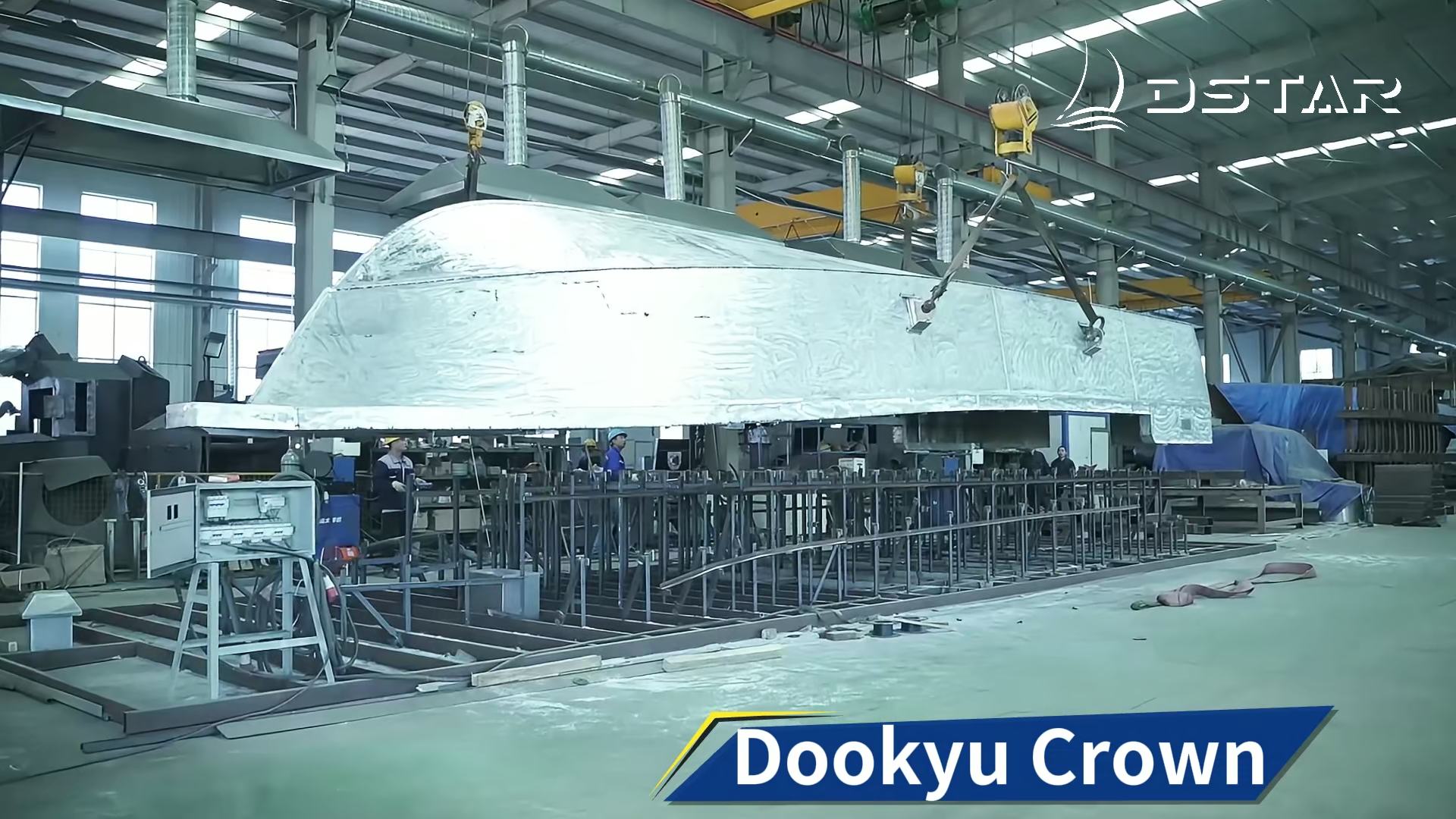

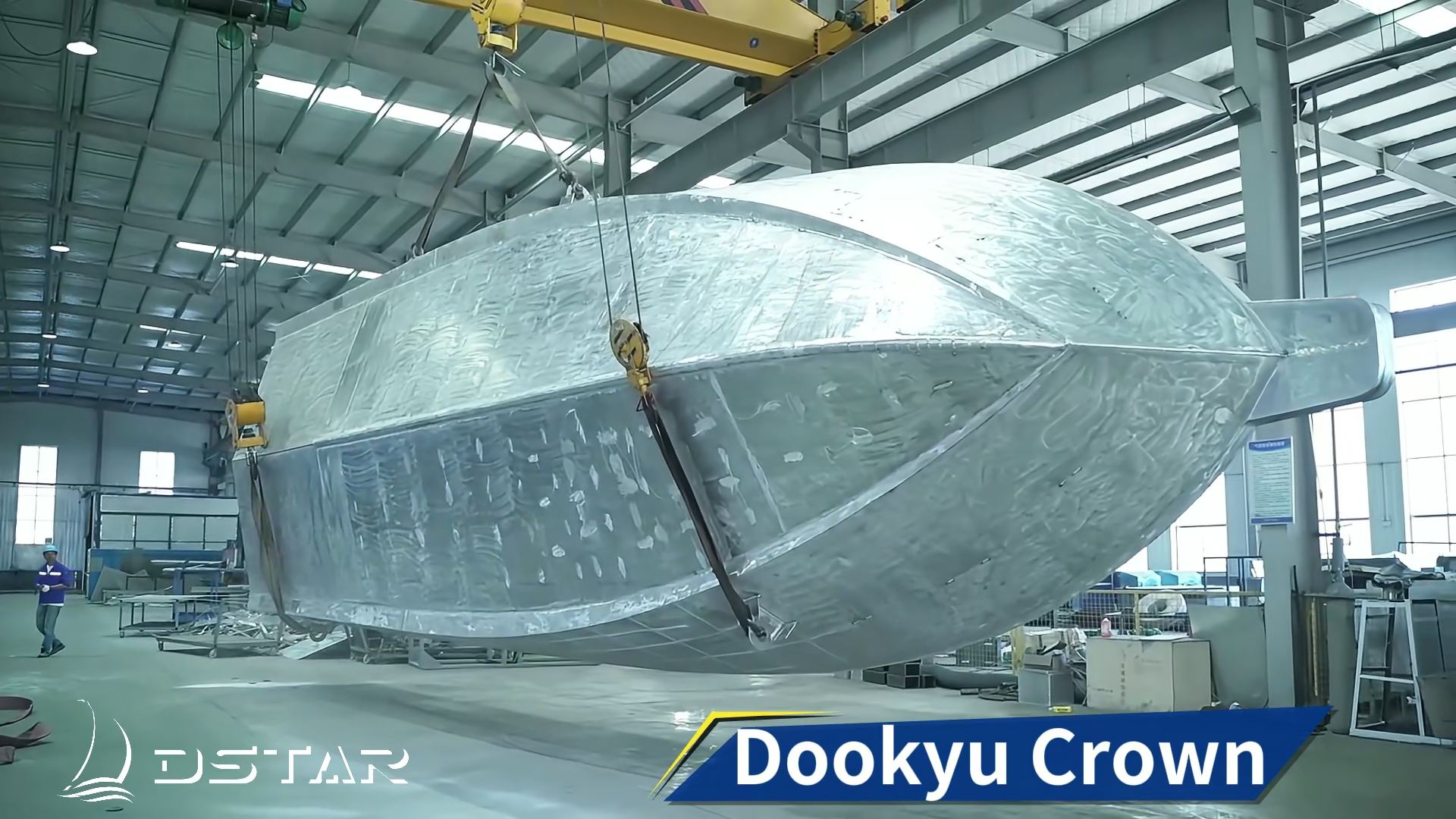

If you have ever visited a professional aluminum boat building facility, you may have witnessed a striking operation: a nearly completed hull, suspended by straps, slowly rotating in the air until its bottom faces upward. This maneuver – known as hull flipping or turnover – is not for dramatic effect. It is a deliberate, engineering‑driven procedure that directly affects the strength, safety, and longevity of the finished vessel.
At Dookyu Crown Marine, we have flipped hundreds of aluminum hulls, from 6‑meter fishing boats to 20‑meter patrol vessels. In this article, we explain why turnover is necessary, how it improves weld quality, controls distortion, and ensures that every joint on your boat meets the highest standards. We will also introduce seven key concepts that every boat owner, builder, or buyer should understand.
Aluminum boats are typically constructed in two main stages: building the hull in an upside‑down position (on a strongback), then turning it over to complete the interior and topside. But many structural welds – especially longitudinal seams, transverse frames, and keel attachments – benefit from welding on both sides of the joint.
When a weld can only be accessed from one side, it is called a single‑sided fillet or groove weld. While acceptable for some non‑critical applications, single‑sided welds are weaker and more prone to incomplete fusion or lack of penetration. Double sided welding access allows the welder to prepare, weld, and inspect both the outside and inside of a joint, resulting in a much stronger, more reliable connection.
By performing aluminum hull flip over construction, the builder rotates the hull 180 degrees after completing the exterior seams. Now the interior surfaces – previously hard to reach or hidden under framing – are fully exposed. Welders can:
Grind and clean the back side of the weld zone.
Apply a second pass from the opposite side (back gouging and re‑welding).
Visually inspect the full penetration area.
Perform non‑destructive testing (dye penetrant or ultrasonic) on both faces.
This level of access is impossible without flipping. For critical structures such as the keel, chine longitudinal, and transom-to-bottom connections, double sided welding access is the difference between a boat that lasts 10 years and one that lasts 30.
H4: Real‑World Example – The Keel Joint
The keel of an aluminum hull flip over construction project receives welds from the outside while the hull is inverted. After turnover, the welder adds a reinforcing fillet on the inside. This double‑sided weld resists grounding impacts far better than a single‑sided weld ever could.
Aluminum alloy has a high coefficient of thermal expansion – roughly twice that of steel. When a welder applies concentrated heat to a small area, the adjacent metal expands, and upon cooling, it contracts. This movement creates residual stresses that can cause warping, buckling, or twisting of the hull if not managed properly. This is why aluminum welding distortion control is one of the most important skills in a marine aluminum fabricator’s toolkit.
You might wonder: how does turning the hull over help control distortion? The answer lies in balanced welding sequence and access. When a hull is welded only from one side, the heat input is asymmetrical. The weld pool cools unevenly, pulling the plate in one direction. By gaining double sided welding access, the fabrication team can:
Weld alternating sections on opposite sides, balancing the thermal stresses.
Back‑gouge the root pass and apply a capping pass from the reverse side, which relaxes residual stresses.
Use clamping and strongbacks on both sides of the plate during turnover.
Without flipping, many interior welds would have to be made in awkward positions (overhead or vertical-up), increasing the risk of poor penetration and uneven heating. Aluminum welding distortion control relies heavily on the ability to position the work optimally – and flipping is the most effective way to achieve that.
H4: Preventing Hull Warpage
During prevent hull deformation during welding, experienced builders use turnover to allow equal heat distribution. A typical sequence: weld outside bottom seams with hull inverted → flip → weld inside bottom seams with hull upright → flip again for final top side welds. This back‑and‑forth approach keeps the hull fair and true.
Some inexperienced builders try to avoid flipping to save time or because they lack proper lifting equipment. The results are often disastrous: twisted hulls, wavy gunwales, misaligned engine beds, and stress cracks that appear during sea trials. Repairing a deformed hull costs far more than a proper turnover procedure. That is why aluminum boat building best practice always includes planned hull flipping.
In the world of marine aluminum fabrication technique, weld quality is measured by penetration, fusion, and freedom from porosity. When a welder can only work from one side, they often have to make compromises – using larger bevel angles, higher heat input, or accepting incomplete root fusion. With hull rotation for weld quality, the welder can:
Perform a full‑penetration groove weld with a backing pass from the opposite side.
Visually inspect the root for lack of fusion or cracks.
Correct defects immediately, before the hull proceeds to painting or outfitting.
Independent studies have shown that double‑sided welds in aluminum have fatigue life up to 50% longer than equivalent single‑sided welds. For hull rotation for weld quality, this alone justifies the flipping operation.
Aluminum boat building best practice dictates a strict flipping procedure:
Reinforce the hull – Temporary cross‑braces and stringer supports prevent flexing during the lift.
Use wide, padded slings – Soft straps distribute weight and protect the hull coating.
Lift slowly from hardpoints – Pre‑installed lifting eyes or designated strong points (e.g., bulkheads) are used.
Rotate in a controlled arc – An overhead crane or multiple chain hoists provide smooth rotation.
Set down on a padded cradle – The flipped hull rests on custom supports that match its new orientation.
Skipping any of these steps can damage the hull or injure personnel. At Dookyu Crown Marine, we train every lifting team to follow these aluminum boat building best practice guidelines.
One concern is that the flipping itself might cause distortion. A hull that is not yet fully welded is relatively flexible. To prevent hull deformation during welding as well as during turnover, builders use temporary strongbacks, internal bracing, and sometimes partial welding of key seams before the flip. After the flip, the bracing is adjusted or removed once the interior welds are complete.
This integrated approach – design for flipping, weld in balanced sequence, and brace strategically – is what separates professional builders from amateurs. Prevent hull deformation during welding starts long before the torch is lit; it begins with the decision to flip.
At Dookyu Crown Marine, we consider hull turnover not an option but a requirement for any aluminum vessel exceeding 5 meters in length. Our fabrication process includes:
Planned flipping for every model, from Aluminum Fishing Boats to Aluminum Patrol Boats.
Double sided welding access on all critical structural joints.
Rigorous aluminum welding distortion control using sequential welding and fixture systems.
Hull rotation for weld quality verification by certified inspectors.
Documented marine aluminum fabrication technique that exceeds ISO standards.
Explicit measures to prevent hull deformation during welding via bracing and heat management.
Adherence to aluminum boat building best practice recognized by classification societies.
We do not flip because it looks cool. We flip because it makes better boats – stronger, straighter, and longer‑lasting.
The next time you see an aluminum hull suspended and slowly turning over in a workshop, you will understand the engineering behind the motion. Aluminum hull flip over construction enables double sided welding access, improves aluminum welding distortion control, enhances hull rotation for weld quality, and represents true marine aluminum fabrication technique. It is the most effective way to prevent hull deformation during welding and is universally recognized as aluminum boat building best practice.
At Dookyu Crown Marine, we build our boats the right way – from the first tack weld to the final sea trial. If you are considering a custom aluminum vessel, contact us to see how our flipped‑hull construction gives you a stronger, safer, more durable boat.
